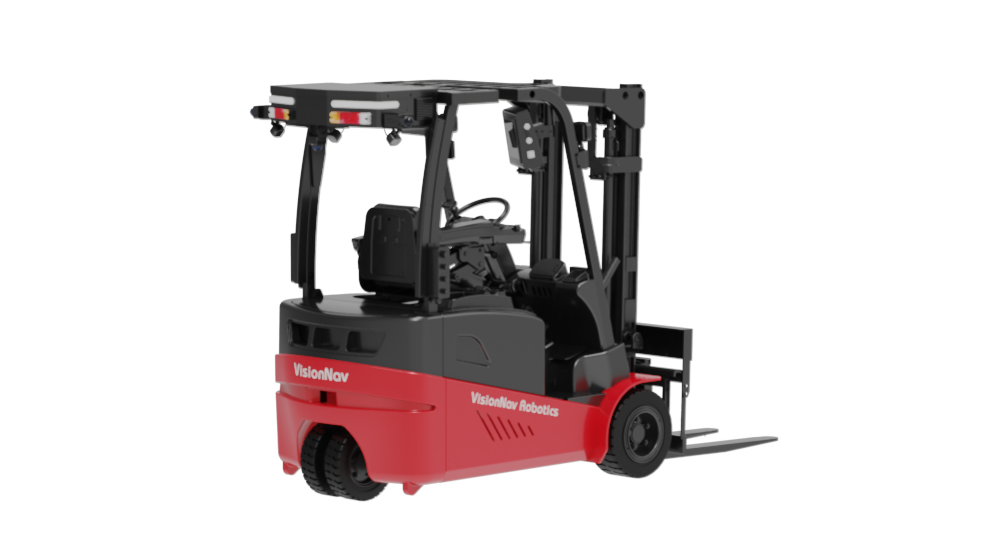

VNE 20

COUNTERBALANCE TRUCK AGV/AMR

VNE20 is a counterbalance truck AGV/AMR, designed to efficiently achieve indoor and outdoor automatic material handling, material loading and unloading, in and out.

E

Product Advantages

Safety

High flexibility

Precise

Efficient

Parameters

2000kg(4409.25lb)

Rated Load Capacity

Up to 4500mm(177.17in)

Fork Lift Height

1835mm(72.24in)

Minimum Turning Radius

2.7m/s(6.04mph)

Maximun Driving Speed

3560mm(140.15in)

Min. Stacking Aisle Width

2435mm(95.86in)

Min. Turning Aisle Width

Additional Information:


1.Lifting Height: Standard duplex mast provides a lifting height of 118 in (3000 mm); optional mast configurations allow lifting heights of 137.80in (3500 mm), 157.48in (4000 mm), and 177.17in (4500 mm).

2.Fork Accessories: Standard configuration includes a side shifter; Optional Fork Positioner; Customizable fork length, fork width.
3.Optional Accessories: 5G Communication Module, Battery Heating Module, Battery Trolley, Safety Bumper, Cargo Overheight Detection, UWB Kit, Bar Code Scanner, RFID Reader, Dashcam, among others.
4.Load Capacity variation: Optional masts, attachments, longer load dimensions or higher lifting heights may result in a derating of capacity.
5.Performance Specifications: Specifications are based on the model equipped with a 118 in (3000 mm) duplex mast.
6.Product Updates: Specifications are subject to change without prior notice; contact your dealer for the latest information.
