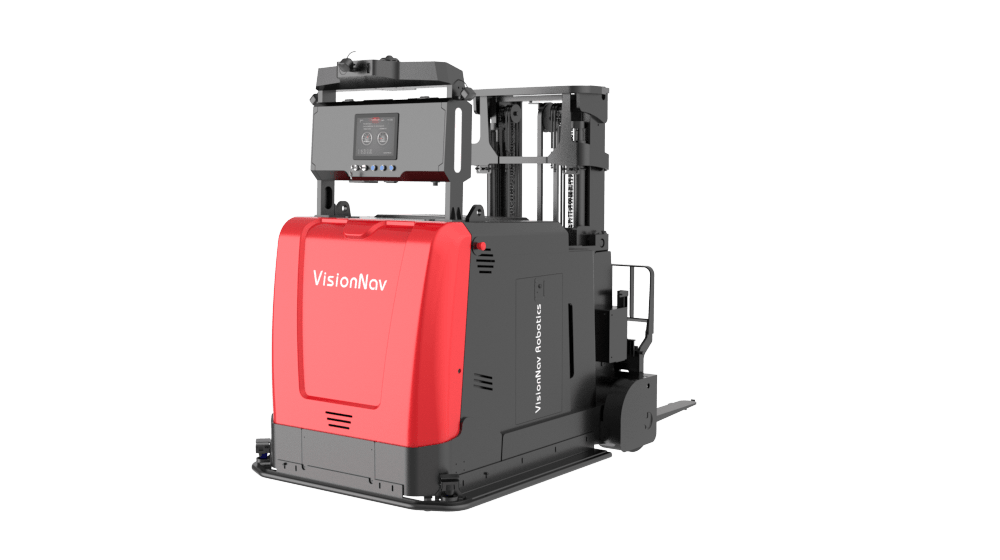

VNP 30

COUNTERBALANCE STACKER AGV/AMR

The VNP30 is a counterbalance stacker AGV/AMR designed to achieve automatic and flexible material handling, material inbound and outbound, greatly improving logistics efficiency. VNP30 can work with varied carriers, such as pallets, storage cages, and can dock with WMS.

P

Parameters

3000kg(6613.87lb)

Rated Load Capacity

Up to 4500mm(177.17in)

Fork Lift Height

2020mm(79.53in)

Minimum Turning Radius

1.5m/s(3.4mph)

Maximun Driving Speed

3850mm(151.57in)

Min. Stacking Aisle Width

2585mm(101.77in)

Min. Turning Aisle Width

Additional Information


1.Lifting Height: Standard duplex mast provides a lifting height of 118 in (3000 mm); optional mast configurations allow lifting heights of 137.80in (3500 mm), 157.48in (4000 mm), and 177.17in (4500 mm).
2.Fork Accessories: Optional side shifter and Fork Positioner; Customizable fork length, fork width.
3.Optional Accessories: 5G Communication Module, Battery Heating Module, Battery Trolley, Safety Bumper, Cargo Overheight Detection, UWB Kit, Bar Code Scanner, RFID Reader, Dashcam, among others.
4.Load Capacity variation: Optional masts, attachments, longer load dimensions or higher lifting heights may result in a derating of capacity.
5.Performance Specifications: Specifications are based on the model equipped with a 118 in (3000 mm) duplex mast.
6.Product Updates: Specifications are subject to change without prior notice; contact your dealer for the latest information.
